Land Forming

WM-Subsurface Design Software

Name: WM-Subsurface Design Software
Brand: PTx Trimble

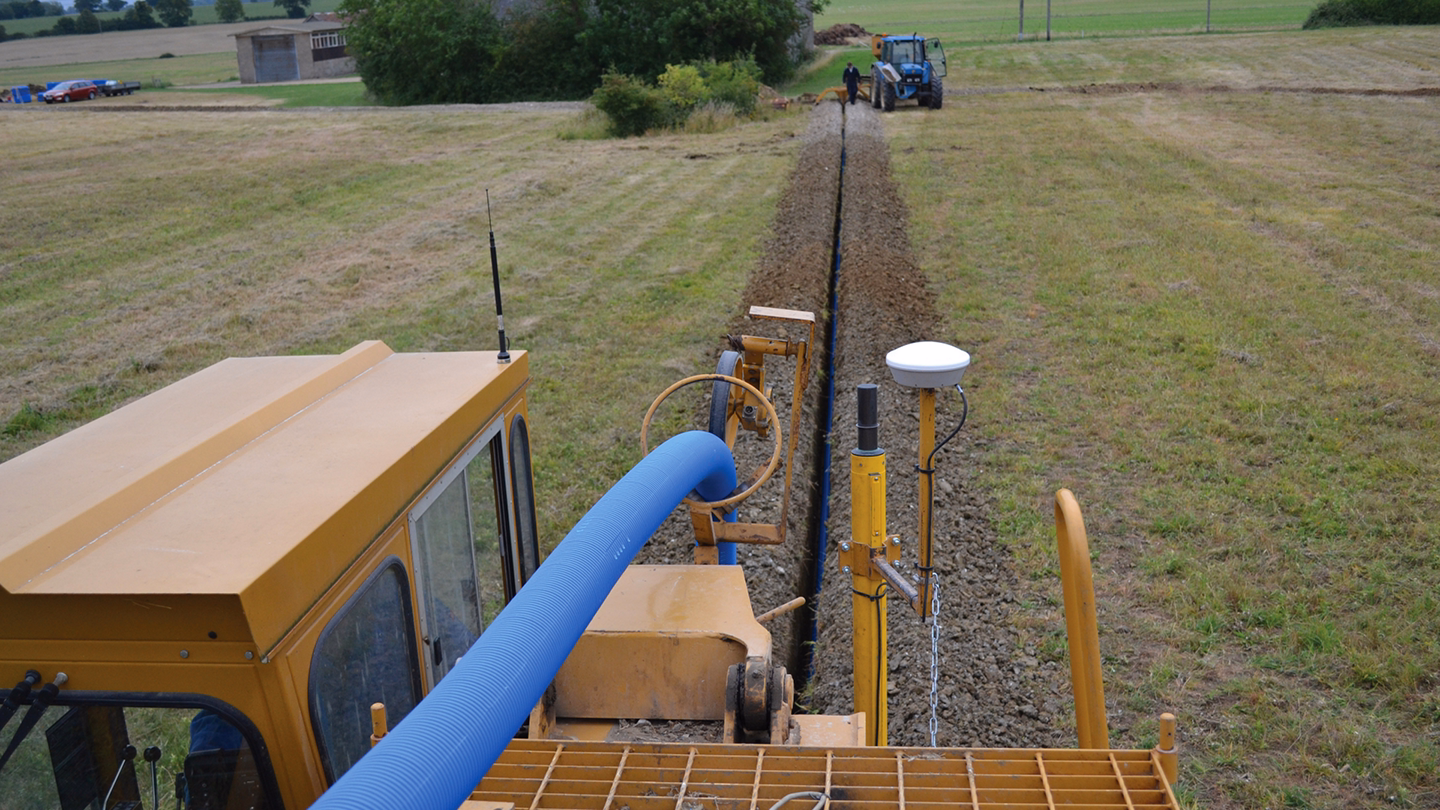

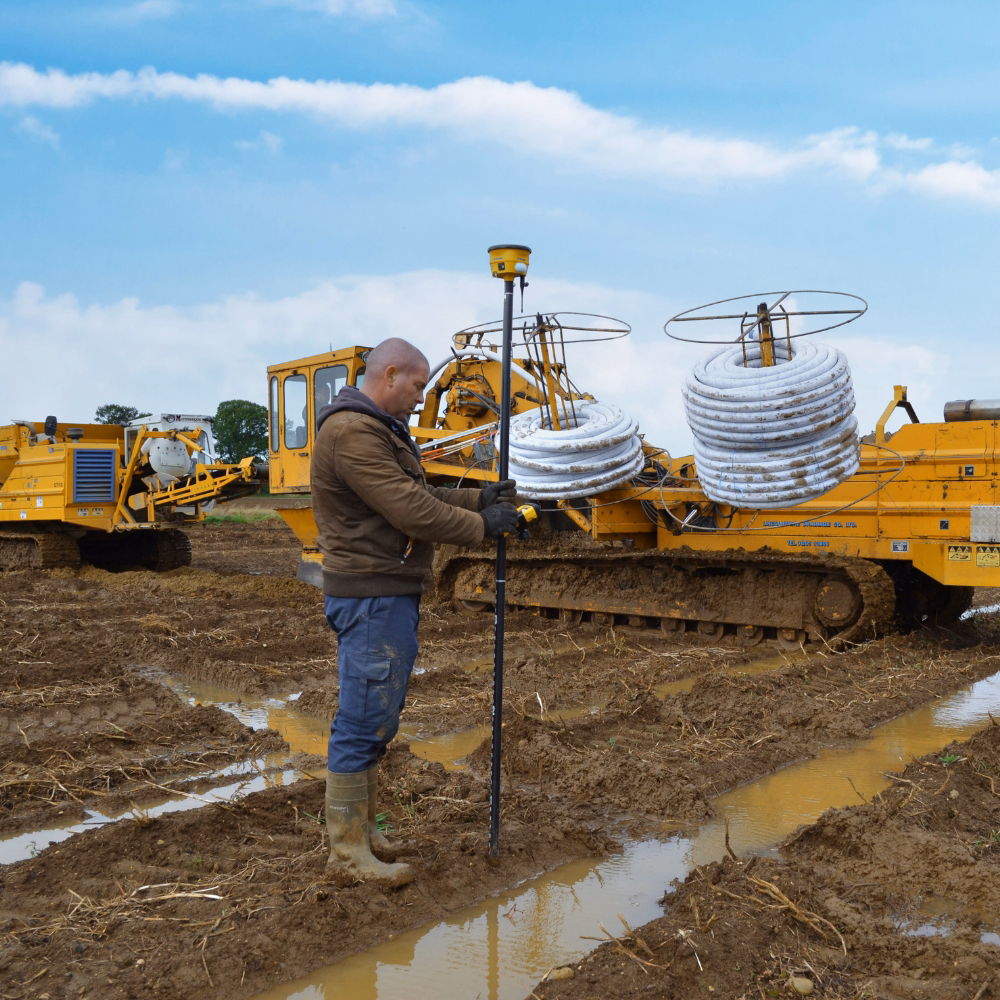

WM-Subsurface™ design software works with PTx Trimble’s WM-Drain® solution to ensure optimal placement of tile and drains in both surface and subsurface drainage projects.

Why choose WM-Subsurface?

Maximize Productivity

WM-Subsurface can help improve placement of field tile and levees to increase crop yields, while also minimizing nutrient loss by creating more consistent water tables.

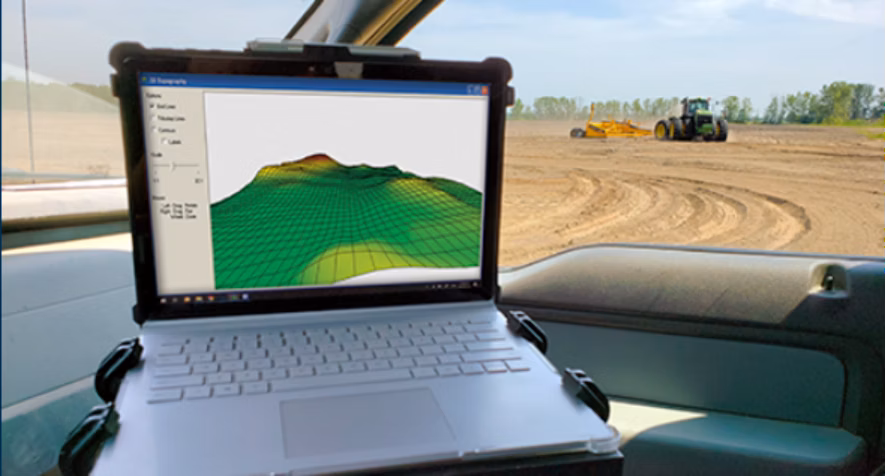

See Your Fields From all Angles

Easily overlay other data layers, such as yield or soil type, to help visualize the field from different perspectives.

Specifications

View data from any angle and exaggerate the vertical to visualize field shape and slope

Determine various watershed zones to assist with main, submain and lateral pipe placement

Configure contours at any interval to help visualize topography and relative elevations

Enable flow arrows and tributary lines to assist with tracing natural surface water flows

Layer field analysis with aerial images

Produce optimal depth designs for more consistent water tables using Autoslope feature

Calculate the recommended pipe size for all pipes within a given design and verify that a pipe network will successfully drain prior to installation

Installs on desktop computers using Microsoft® Windows® 7 or above
